Installation with Treon Orientation Adapter

Introduction

With the Orientation Adapter, the Treon Industrial Node X is attached to the machine surface using a threaded mounting hole. The adapter enables manual alignment, allowing the measurement axes to be oriented as needed for the monitored equipment.

This installation method requires a flat surface of at least 25 mm (0.98 in) in diameter, and a threaded hole for an M6×1 or M8×1.25 bolt with a minimum depth of 9 mm (0.35 in). For best measurement performance, the adapter should be tightened to approximately 20 Nm to ensure firm mechanical coupling.

Applies to: Treon Industrial Node X
Adapter: Treon Orientation Adapter
Use when: You need to align the measurement axes and have a threaded mounting hole on a flat surface.

Specifications

Requirements

For this installation method you will need:

• Treon Industrial Node X.
• Treon Orientation Adapter.
• Tap/drill M6×1 or M8×1.25 bolt hole with minimum 9 mm (0.35 in) thread depth.
• Torque wrench capable of applying 20 Nm.
• Cleaning materials (degreaser/isopropyl alcohol, lint‑free wipes).
• Personal protective equipment (PPE) as per site rules.

Safety & Preparation

1. Isolate an/or turn off the asset and other equipment in close proximity if required by your site procedures.
2. Select a flat, smooth area larger than the sensor base close to the measurement point and away from resonant/loose parts.
3. Clean the surface thoroughly; remove paint, rust, oil, and debris.
4. Verify there is sufficient thickness in the asset’s material for the tapped hole.

Step-by-step installation guide

Step 1: Drill mounting hole

Start with carefully drilling an M6×1 or M8×1.25 hole into the machine surface at the location you have chosen for the measurements. Please consider carefully where you drill the hole. If you are unsure, please consult the manual of the machine or the manufacturer.

Be sure to drill the hole with the correct alignment to the machine. For most uses, an exact angle of 90° to the plane will be the right choice.

The minimum required thread hole depth to drill is 9 mm or 0.35 in.

Step 2: Clean the surface

After drilling, clean the machine surface thoroughly.

Step 3: Attach mounting bolt to adapter

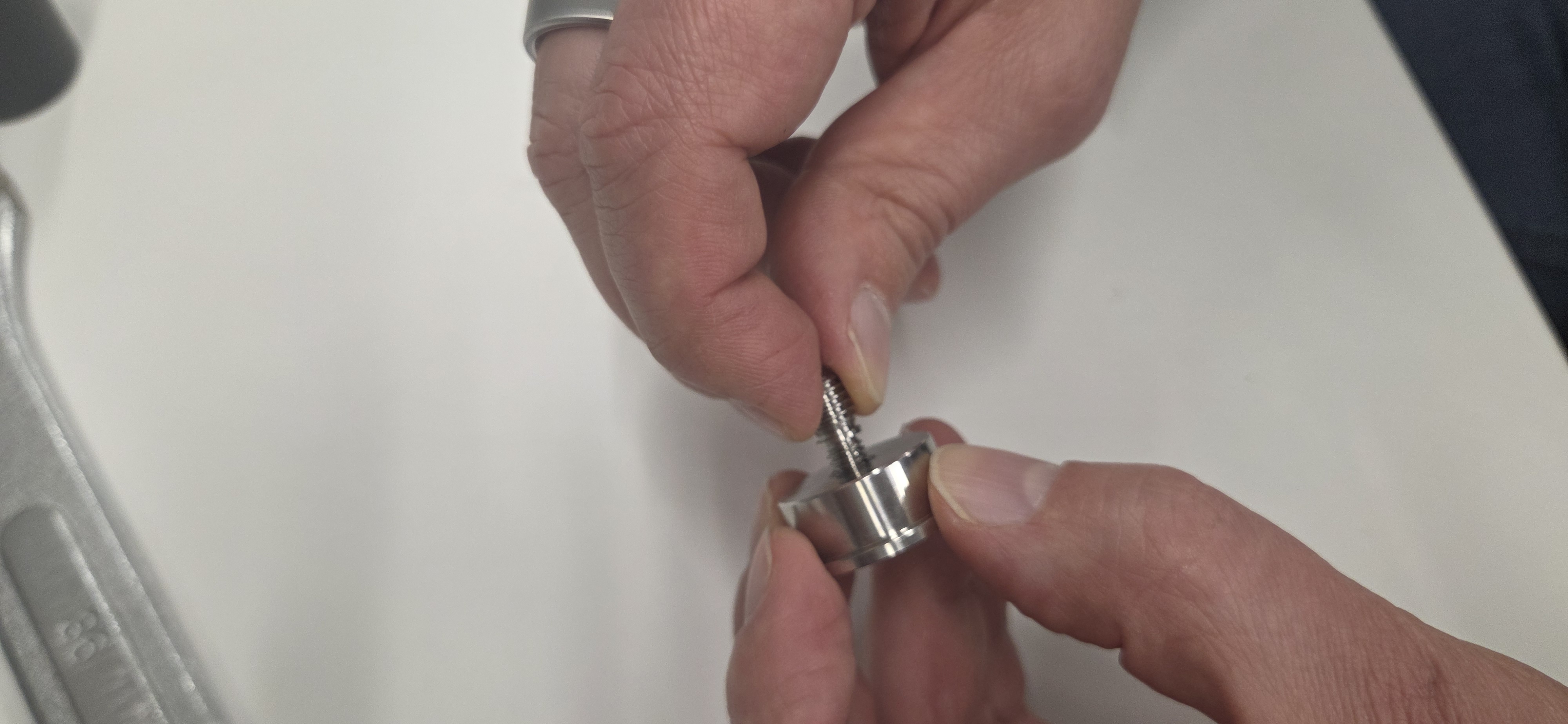

Attach the mounting bolt to the Treon Bolt Adapter. Choose the M6×1 bolt if you drilled an M6 hole and the M8×1.25 bolt if you drilled an M8 hole.

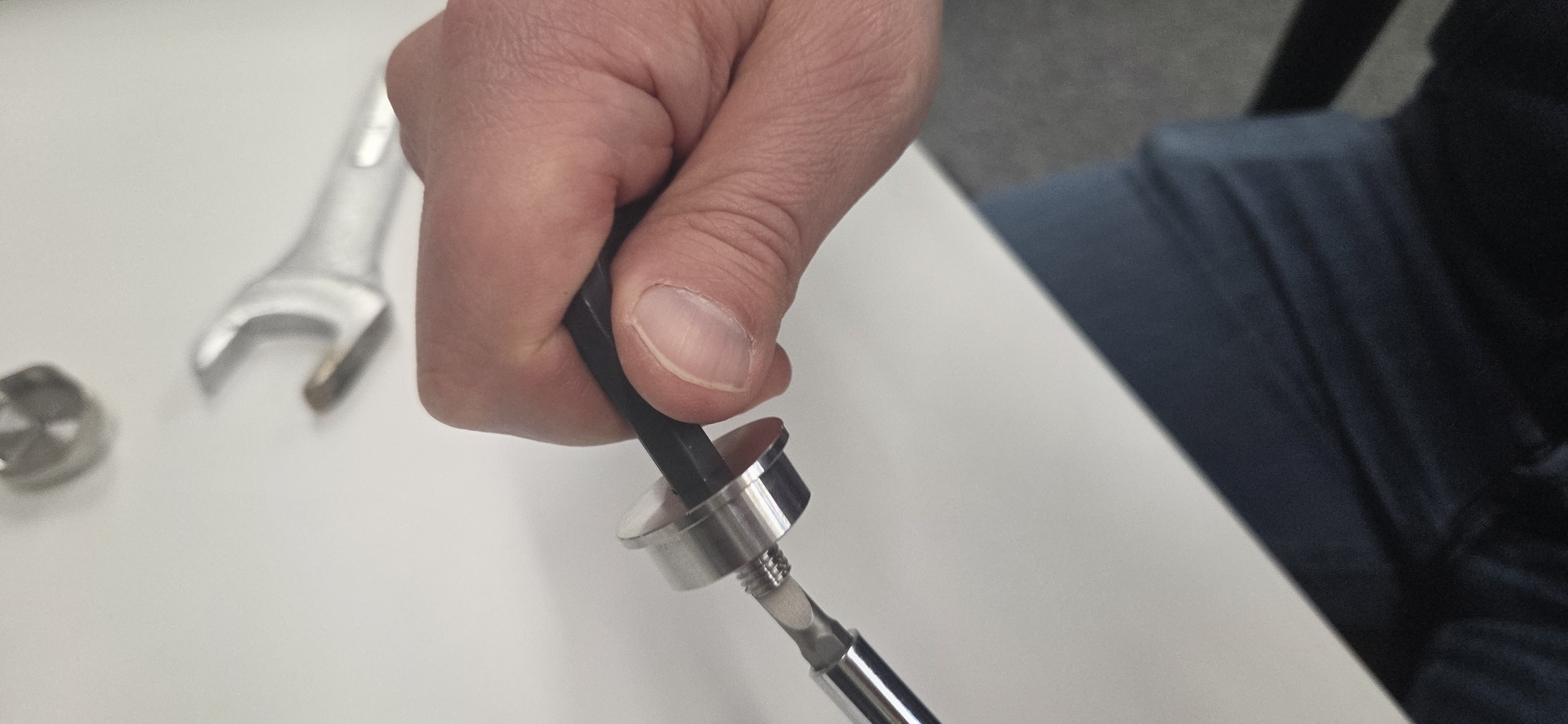

Place hex key to hex socket on the top side of the adapter and tighten bolt wit a screwdriver.

Step 4: Attach orientation adapter to orientation nut

Slide the orientation adapter to the orientation nut.

Step 5: Mount adapter on asset

Place the assembly on the mounting hole on your asset. Tighten firmly with a hex key.

Step 6: Attach adapter to asset

Now install the Treon Orientation Adapter in the bolt hole on the cleaned asset’s surface.

Step 7: Install node on adapter

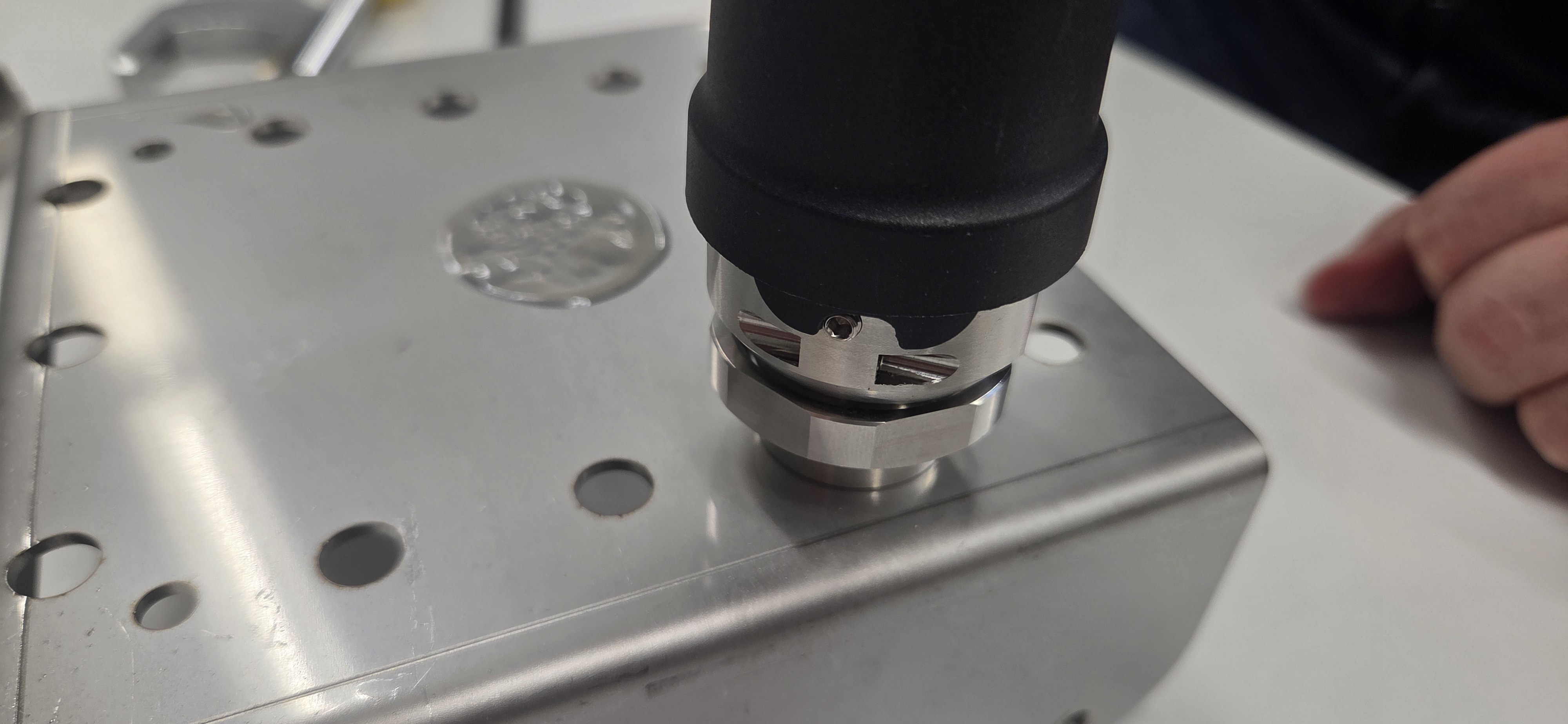

Place the Treon Industrial Node X on the mounted adapter. Screw nut to the Node X but do not tighten.

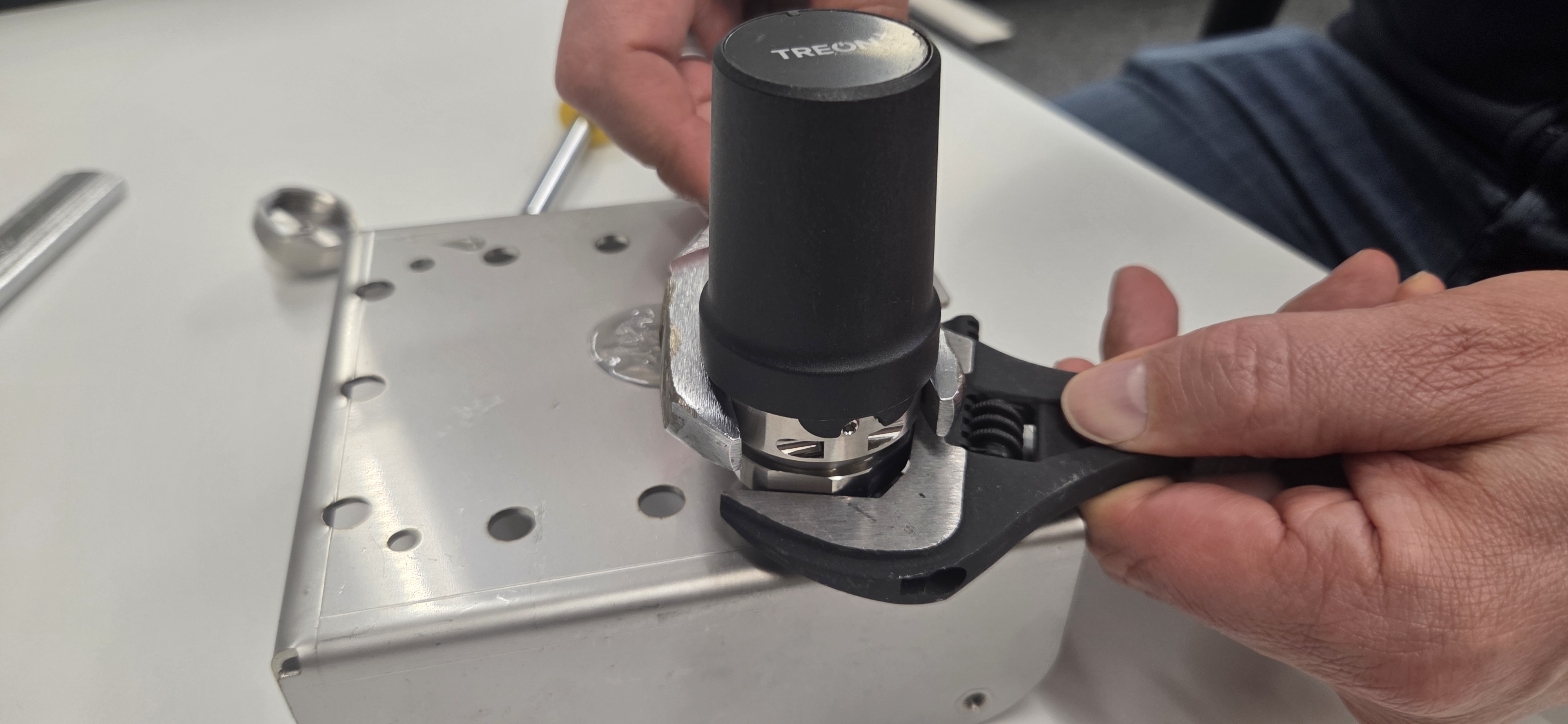

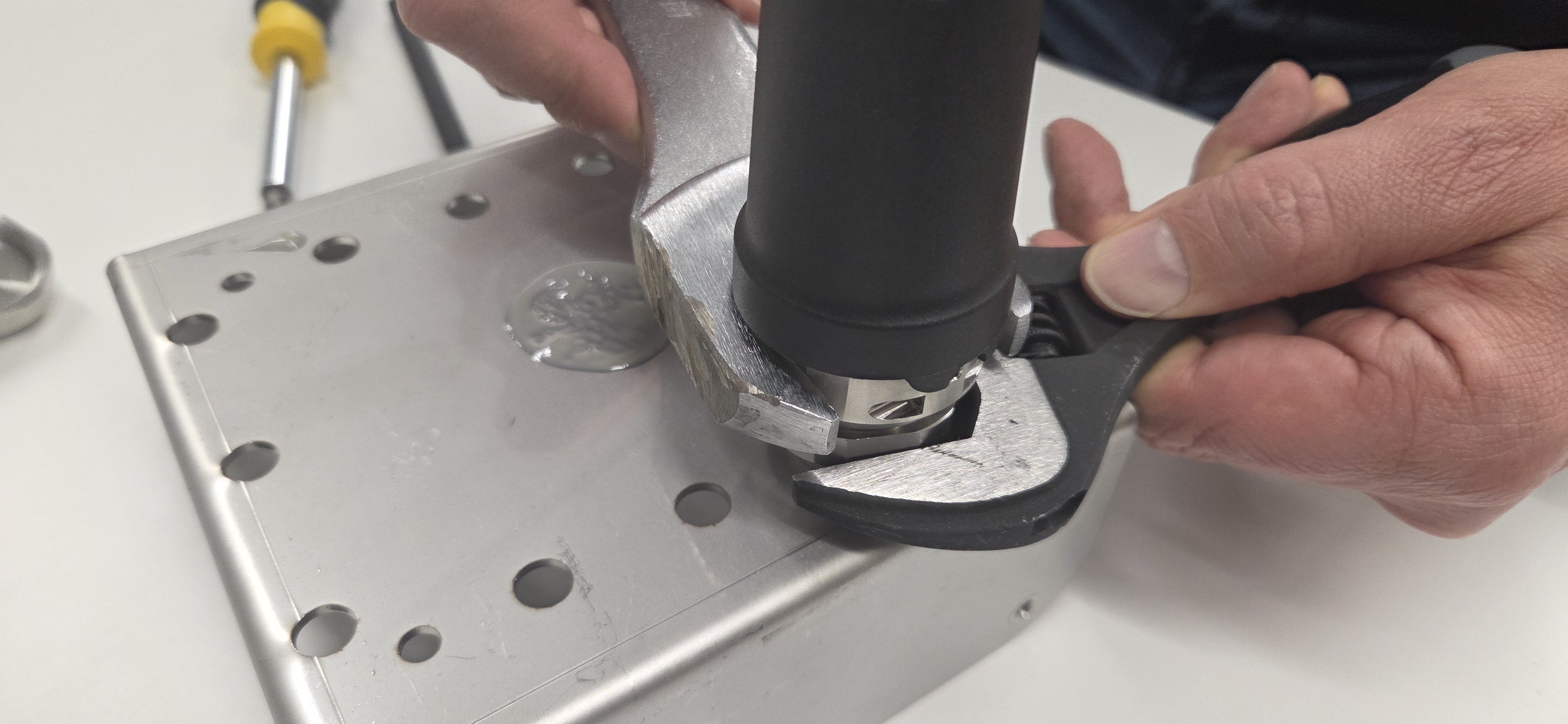

Rotate the node to desired orientation. Tighten the connection with a spanner size 34 mm and a torque wrench set to exactly 20 Nm.

Step 8: Alignment

How to align??

Verification

• Confirm axis alignment marks match the intended directions.
• Run a quick measurement and validate expected directional sensitivity.

The Treon Industrial Node X is now fully installed!

Troubleshooting

Disclaimer

Treon is not responsible for any damage, injury, or malfunction resulting from the installation or use of the Treon Industrial Node X.

Installation must be performed by qualified personnel.

Any issues arising from incorrect installation, improper handling, or use outside the specified guidelines are the sole responsibility of the installer or end user.
