Mounting a sensor

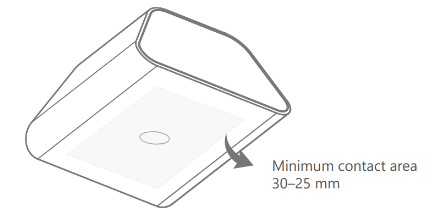

The temperature and vibration sensors in the Treon Industrial Node C are located at the base of the device. Any part of the base can serve as a contact point, but for accurate readings, the contact area should be at least 30 x 25 mm. For best results, center this contact area over the mounting location. The circular aluminum element at the center of the base transfers heat directly from the asset’s surface to the internal temperature sensor.

Identify the optimal location and orientation on the asset for effective monitoring, then mount the sensor at that spot. To install the sensor, you will need to purchase an industrial adhesive. We recommend cyanoacrylate-based adhesives such as Loctite 454, Loctite 3090, Loctite 4070, or a similar product.

• For flat and smooth surfaces, a thin layer of adhesive like Loctite 454 is sufficient.
• For curved or uneven surfaces, apply a slightly thicker layer of adhesive such as Loctite 3090 or Loctite 4070 to ensure a secure bond.

If you are uncertain of where to mount your Treon Industrial Node C sensors, see our article on Positioning a sensor.

⚠️ Warning: When installing sensors, ensure you review and comply with all relevant safety regulations. You are solely responsible for the safe installation of the sensor on any equipment or machine component. Mounting the sensor requires the use of an industrial adhesive. Always follow the safety and handling guidelines provided by the adhesive manufacturer.

For more information about the recommended adhesive, see the technical information:

• Loctite 454 Technical Information
• Loctite 3090 Technical Information
• Loctite 4070 Technical Information

To mount a sensor

To mount a Treon Industrial Node C sensor, follow these steps:

1. Surface preparation:
   Thoroughly remove all oil, grease, and debris from the surface where the sensor will be installed.


2. Sensor glueing:
   If the surface that you’re mounting the sensor to is flat and relatively smooth, apply a thin layer of adhesive such as Loctite 454 to the bottom of the sensor, maximizing the area that will be in contact with the asset.


   If the surface is rounded or somewhat uneven, apply a slightly more liberal layer of adhesive such as Loctite 3090 or Loctite 4070 to the bottom of the sensor. The layer of adhesive can bridge distances of up to 5 mm between the surface and the sensor if necessary.


3. Hold the sensor:

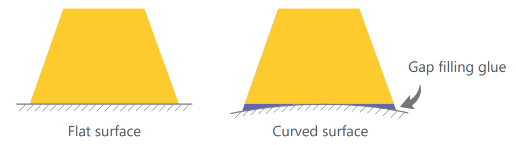

   Hold the sensor to the mounting location on the machine part for 30 seconds, pressing firmly. If you’re mounting the sensor on a curved surface, put a small amount of additional adhesive on each side for better contact between the sensor and the surface. Based on the surface and the adhesive used, your results should look similar to the following.


4. Success:
   Your Treon Industrial Node C sensor has been successfully glued to an asset and is ready for use!
