Reading sensor measurement data (Trends) in the Treon Connect Mobile app

Introduction

Analysing the sensor measurement data of the sensors on your Assets can give you valuable information on your Assets' maintenance status and lets you plan maintenance events well ahead of time.

In order to access the sensor measurement data of your Assets, follow the steps below.

Reading measurement data

Step 1: Open Assets in Treon Connect Mobile

Open the Treon Connect app on your phone.

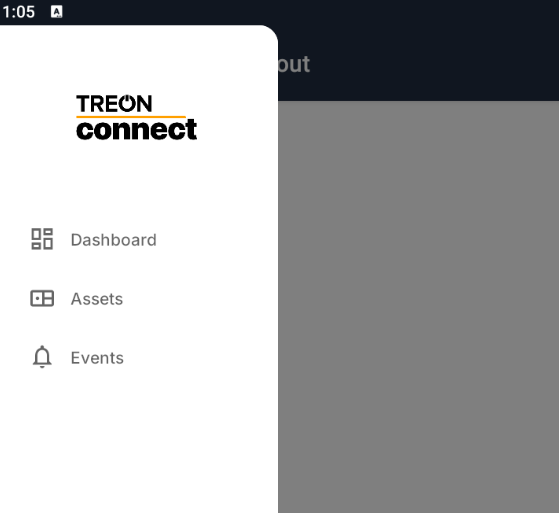

In the navigation plane on the left side, click the Assets menu.

Step 2: Choose Asset

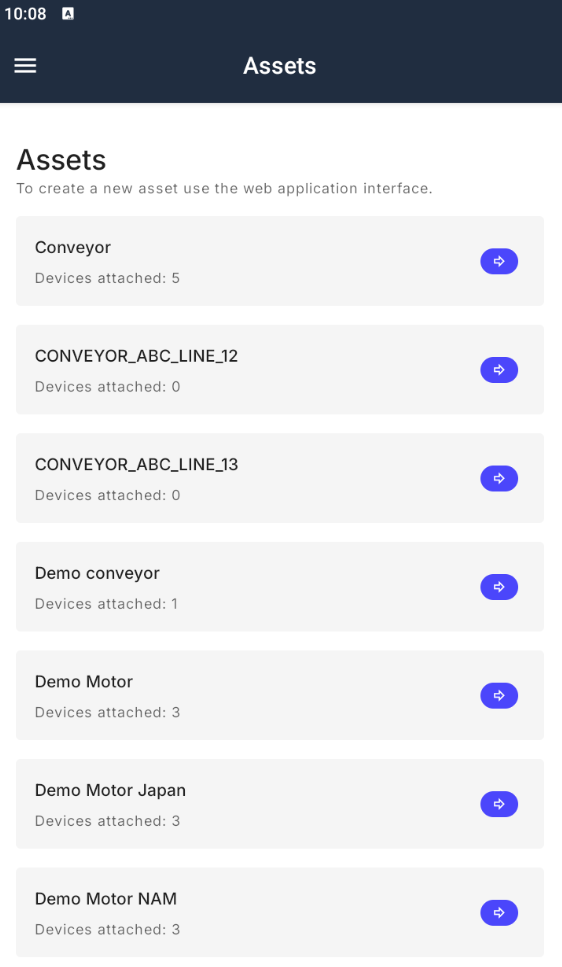

From the list of Assets, choose the Asset you would like to see data from.

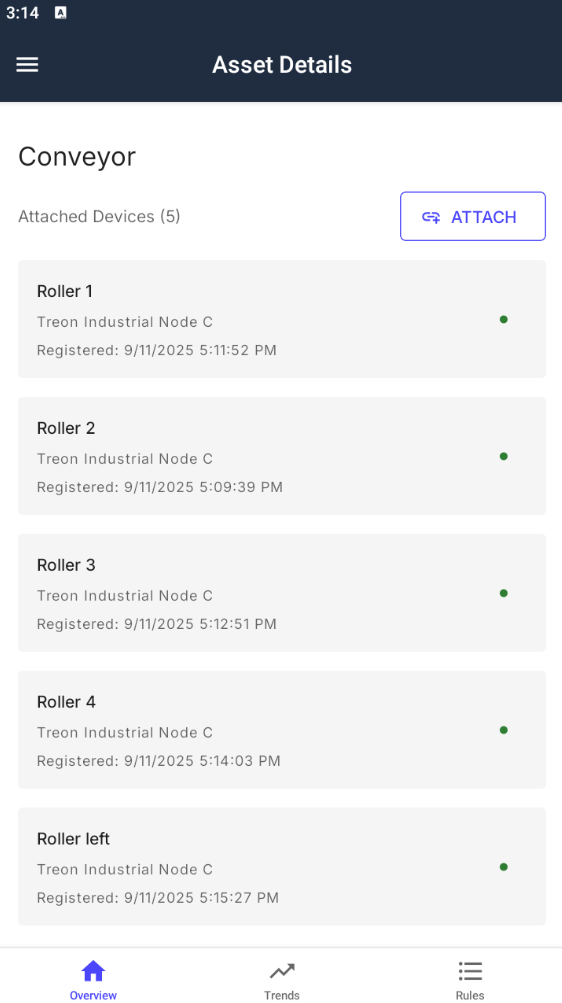

This will open the Asset’s details with all sensors attached to the Asset.

Step 3: Access Trends menu

On the bottom menu, choose Trends to access the Trends menu to view your sensor measurement data.

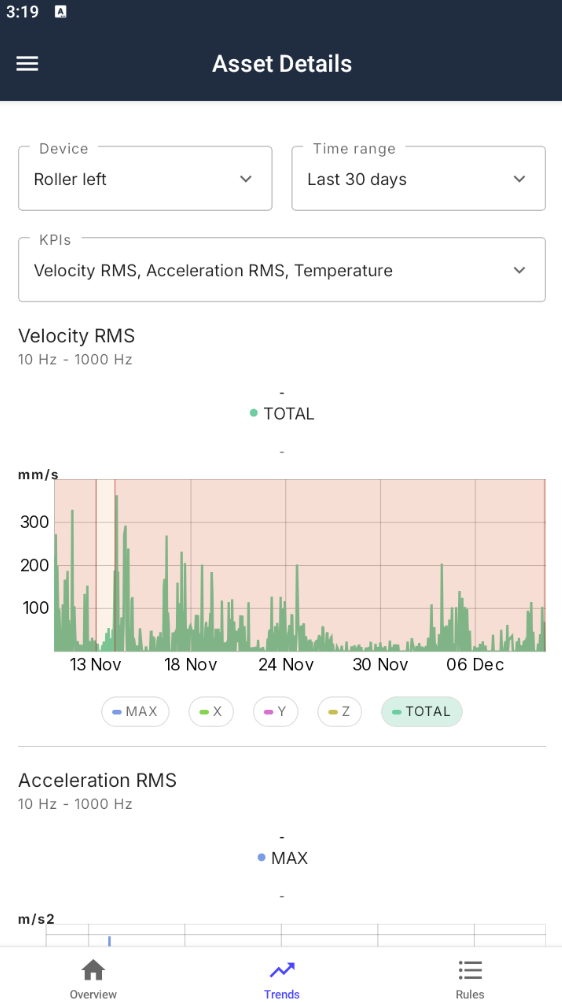

Step 4: Choose measurement data

You can choose which sensor’s data to view, the KPI and the time range:

• Device: Choose the sensor device on the Asset that you would like to view measurement data from. If only one device is attached to the Asset, you can only choose this one device. If multiple devices are attached to the Asset, please choose the correct one from the drop-down list.
• Time range: Choose the time range for which to see data from. You can choose any time range from the last 3 hours to the last 30 days from the drop-down menu.
• KPIs: Choose the type of measurement data you would like to view in the drop-down menu. You can select multiple KPIs (Key Performance Indicators) at the same time.

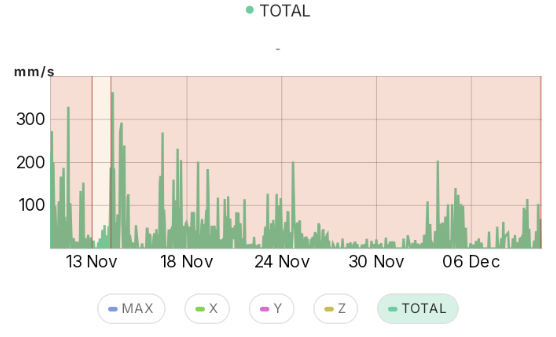

You will see the overview of your KPIs in Total and below the measurment data for the KPIs you selected.

Please Note: When you select multiple KPIs, the data for these KPIs will be shown one after the other. Please scroll down the screen to see all data.

If you would like to change the parameters of your data, you can switch the sensor, the KPIs and the time range at any time.

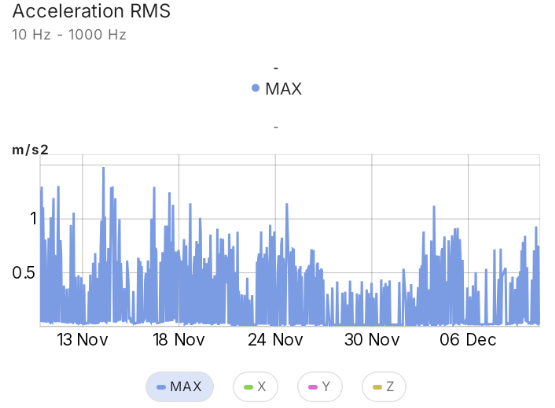

The graphs are fully interactive. You can select any data point by clicking on the graph, and the value for this measurement will show above the graph:

In this example, the measurement value for the KPI Acceleration RMS was 0.54 on 12th February 2025 at 10:30 am.
